Section 13 (Fuel System (VIN Y))
>>

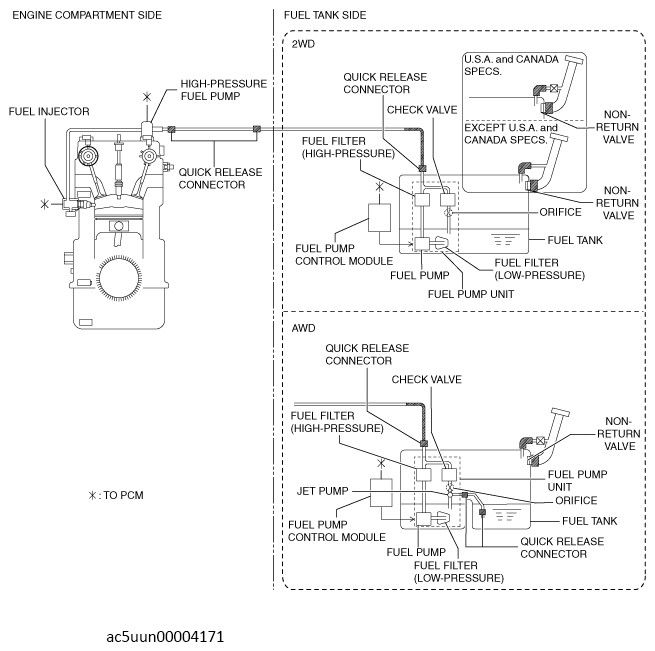

Fuel System Flow Diagram
Fuel System Flow Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
