Propeller Shaft Removal Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not mark with a punch to prevent imbalance.

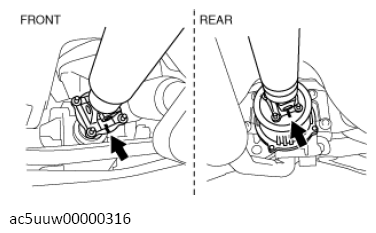

  1. Before removing the nut, place alignment marks on the companion flange (front) and constant velocity joint, and on the coupling component (rear) and yoke.
    G13673656Courtesy of MAZDA MOTORS CORP.
  2. Loosen the nuts (front, rear, center bearing support).
  3. Remove the front and rear nuts.
    CAUTION:
    • Propeller shaft is attached to the stud.
  4. Press the propeller shaft and remove it from the rear side.
    CAUTION:
    • Do not bend the propeller shaft to the extent that it interferes with the boot.
  5. Remove the center bearing support nut, then remove the propeller shaft
