Water Pump Component Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the bolts in the order shown in the figure.

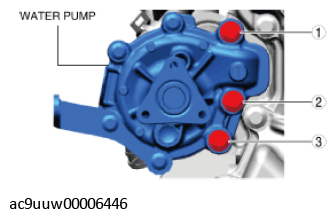

Fig 1: Water Pump Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N-m {2.1-2.6 kgf.m, 15-19 ft.lbf}
Install the engine oil temperature sensor/engine oil pressure sensor. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
Install the wiring harness clip shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N-m {82-112 kgf.cm, 71-97 in.lbf}
