Cooling System Location Index

WARNING: This page is about a different variant/trim than selected.

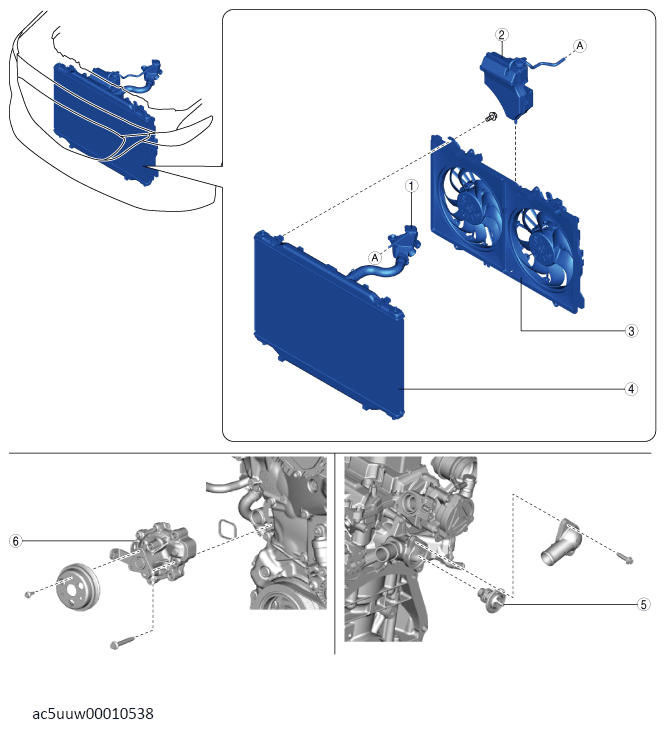

G13672252Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Cooling system cap
(See COOLING SYSTEM CAP INSPECTION .)
2 Coolant reserve tank
(See ENGINE COOLANT LEVEL INSPECTION .)
(See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
3 Cooling fan component
(See COOLING FAN MOTOR REMOVAL/INSTALLATION .)
(See COOLING FAN MOTOR INSPECTION .)
4 Radiator
(See ENGINE COOLANT PROTECTION INSPECTION .)
(See ENGINE COOLANT REPLACEMENT .)
(See ENGINE COOLANT LEAKAGE INSPECTION .)
(See RADIATOR REMOVAL/INSTALLATION .)
5 Thermostat
(See THERMOSTAT REMOVAL/INSTALLATION .)
(See THERMOSTAT INSPECTION .)
6 Water pump
(See WATER PUMP REMOVAL/INSTALLATION .)
