Cooling Fan Component Installation Note
WARNING: This page is about a different variant/trim than selected.

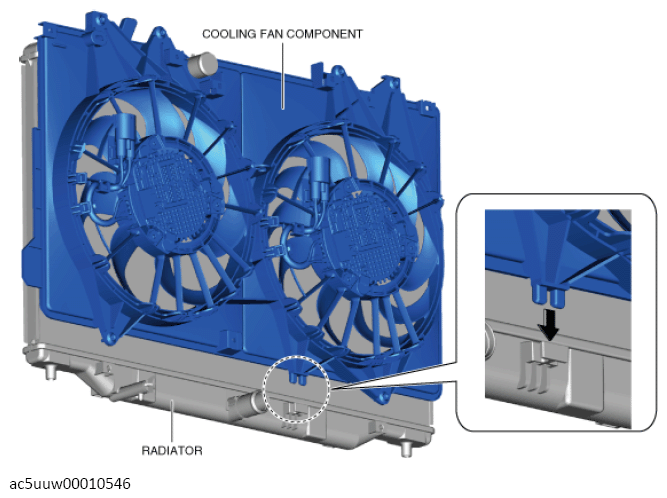

- Install the cooling fan component as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Install the cooling fan component.
Tightening torque
6.9-9.8 N-m {71-99 kgf.m, 62-86 ft.lbf}
