Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

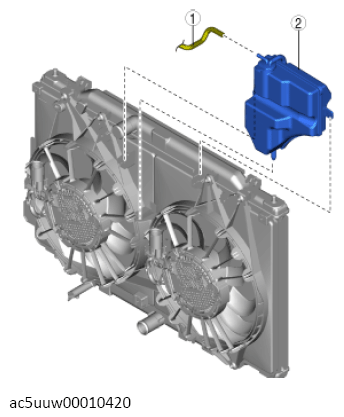

    G13672243Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Hose
2 Coolant reserve tank
(See Coolant Reserve Tank Removal Note .)
