Oil Shower Pipe Installation Note
WARNING: This page is about a different variant/trim than selected.

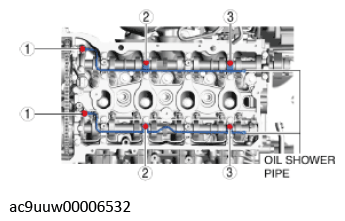

- Install the oil shower pipe in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
TORQUE SPECIFICATION
| Installation position |
Tightening torque |
| 1 |
9-12 N.m {92-122 kgf.cm, 80-106 in.lbf} |
| 2, 3 |
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf} |
