Oil Control Valve (OCV) Removal/Installation
WARNING: This page is about a different variant/trim than selected.
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
- Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.

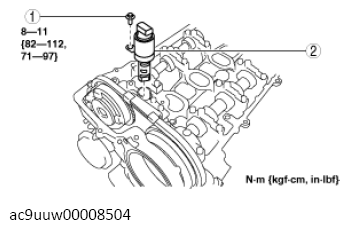

- Install in the reverse order of removal.PART DESCRIPTION
1 OCV installation bolt 2 OCV
