No. 4 engine mount rubber removal note

WARNING: This page is about a different variant/trim than selected.

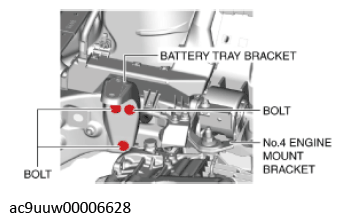

  1. Loosen the battery tray bracket installation bolts.
    G11436657Courtesy of MAZDA MOTORS CORP.
  2. Set the front wiring harness protector No. 2 aside from the body. (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .)
    G11436658Courtesy of MAZDA MOTORS CORP.
  3. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
    CAUTION:

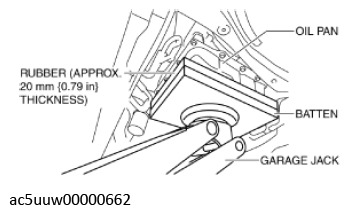

    • To prevent damage to the transaxle, support the transaxle using the following methods.
      • Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
      G11436659Courtesy of MAZDA MOTORS CORP.
  4. Before removing the No. 4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.
  5. Remove the No. 4 engine mount rubber.
