No. 4 engine mount bracket installation note

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the No. 4 engine mount bracket is newly replaced, place alignment marks in the same locations as the part before the replacement.

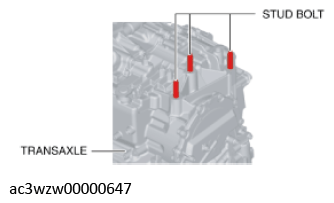

When loosening the nuts of the No. 4 engine mount bracket, the transaxle stud bolts could also become loose.

Tighten the transaxle stud bolts.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

15-25 N.m {1.6-2.5 kgf.m, 12-18 ft.lbf}

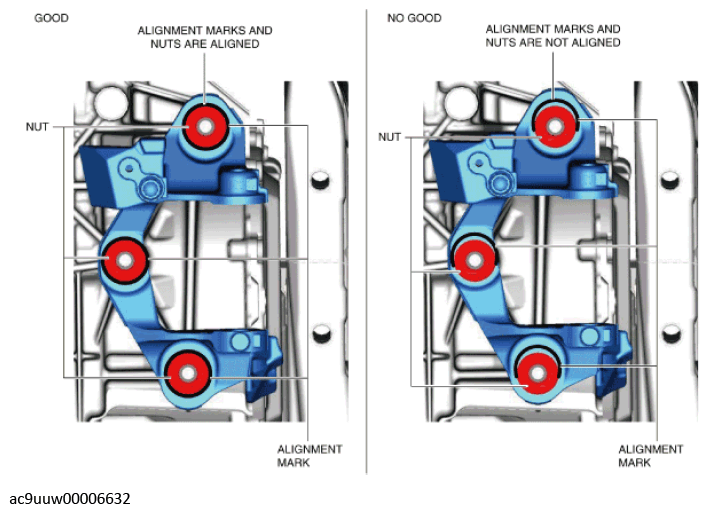

Align the alignment marks on the No. 4 engine mount bracket and nuts, and temporarily tighten the nuts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

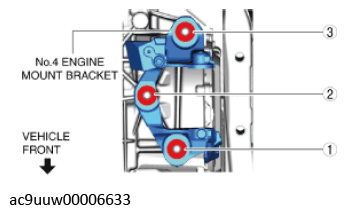

Tighten the No. 4 engine mount bracket installation nuts in the order shown in the figure.

Fig 1: No. 4 Engine Mount Bracket Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

92-116 N.m {9.4-11 kgf.m, 68-85 ft.lbf}

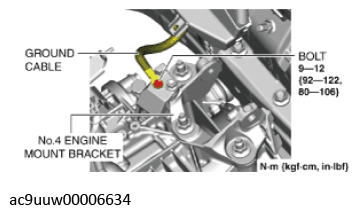

Install the ground cable to the No. 4 engine mount bracket.

Fig 2: No. 4 Engine Mount Bracket, Ground Cable And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
