No. 3 engine mount installation note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When replacing the No. 3 engine mount, place a mark at the same position as the one placed before removal.
  • If the No. 3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.
  1. Tighten the engine front cover stud bolts.
    G11436644Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}

  2. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:

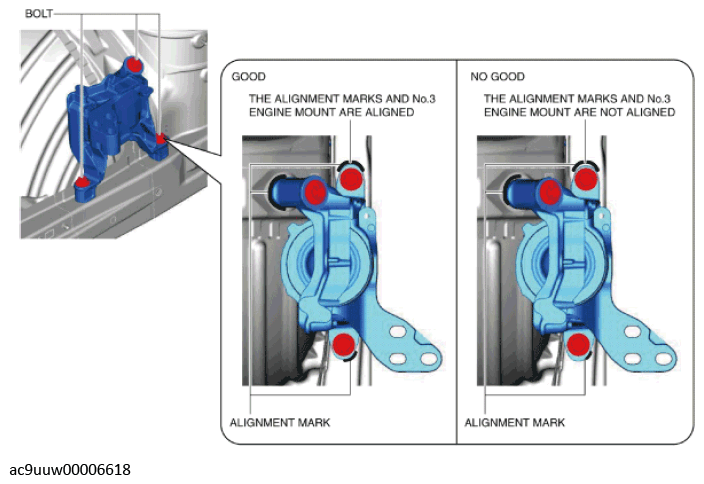

    1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the figure.
      G11436645Courtesy of MAZDA MOTORS CORP.

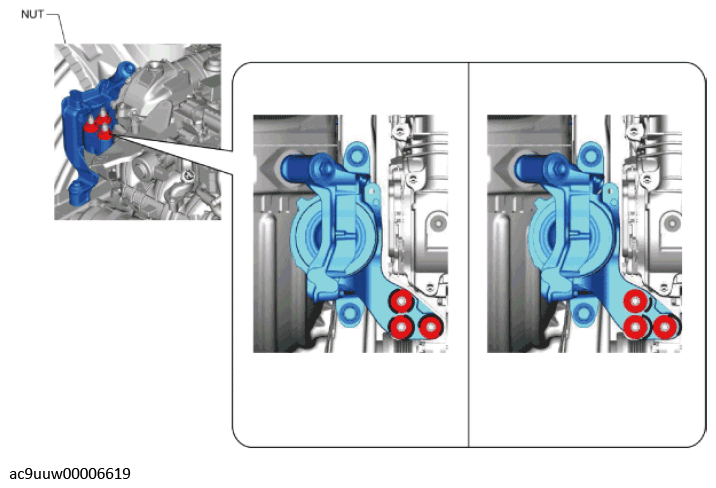

    2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No. 3 engine mount and nuts.
      G11436646Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.
  3. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the figure.
    Fig 1: No. 3 Engine Mount, Bolts And Nuts Tightening Sequence
    G11436647Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    TORQUE SPECIFICATION

    No. Tightening torque
    1 76-95 N.m {7.8-9.6 kgf.m, 57-70 ft.lbf}
    2 82-95 N.m {8.4-9.6 kgf.m, 61-70 ft.lbf}
    3 49-65 N.m {5.0-6.6 kgf.m, 37-47 ft.lbf}
  4. Remove the engine lifter or garage jack.
  5. Install the wiring harness bracket shown in the figure.
    Fig 2: No. 3 Engine Mount, Cooler Hose, Bolts And Nut With Torque Specification
    G13107092Courtesy of MAZDA MOTORS CORP.
  6. Connect the clip shown in the figure.
    G11436639Courtesy of MAZDA MOTORS CORP.
  7. Install the PCM component using the following procedure:
    1. Return the PCM component that was set aside to its original position.

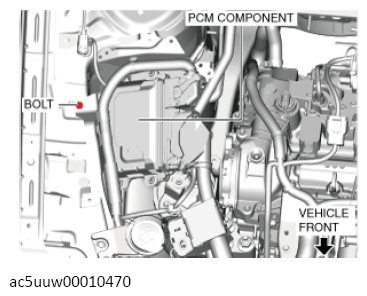

    2. Temporarily tighten the bolt shown in the figure.
      G13107137Courtesy of MAZDA MOTORS CORP.

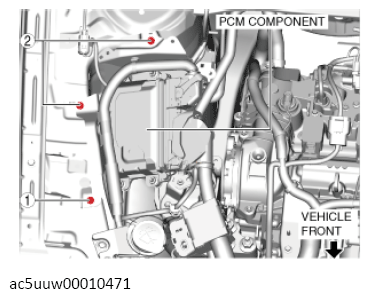

    3. Tighten the PCM component installation bolts in the order shown in the figure.
      Fig 3: PCM Component Bolts Tightening Sequence
      G13107138Courtesy of MAZDA MOTORS CORP.

      Tightening torque

      9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}

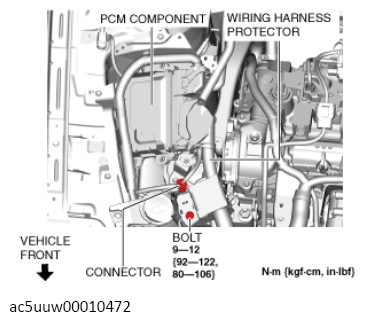

    4. Install the wiring harness protector and connector.
      Fig 4: PCM Component, Wiring Harness Protector, Connector And Bolt With Torque Specification
      G13107139Courtesy of MAZDA MOTORS CORP.

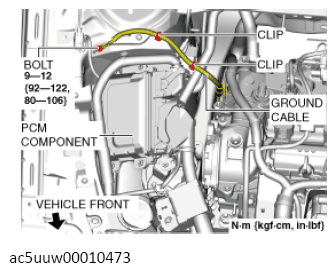

  8. Install the ground cable shown in the figure.
    Fig 5: PCM Component, Ground Cable, Clips And Bolt With Torque Specification
    G13107140Courtesy of MAZDA MOTORS CORP.
