No. 1 Engine Mount (AWD): Notes

WARNING: This page is about a different variant/trim than selected.

NOTE:

When removing the No. 1 engine mount bracket B for AWD vehicles, perform the procedure with the transfer completely removed from the transaxle.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

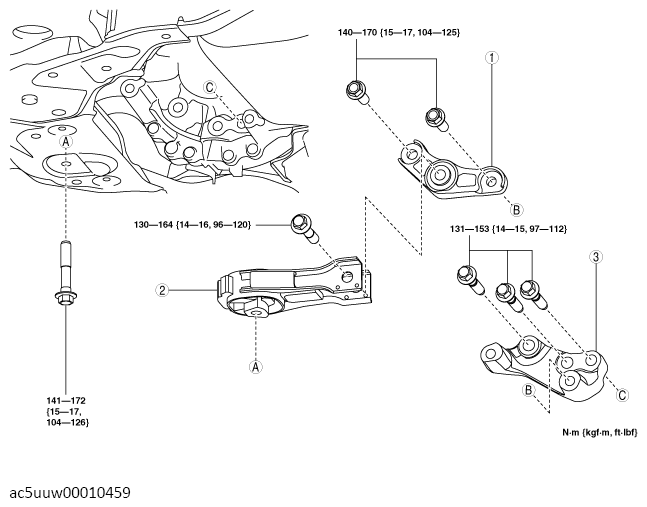

Fig 1: No. 1 Engine Mount Components With Torque Specification (AWD)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	No. 1 engine mount bracket A (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
3	No. 1 engine mount bracket B (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
