Oil Cooler Pipe Component Removal Note

WARNING: This page is about a different variant/trim than selected.

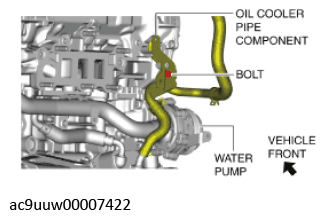

  1. Remove the bolt shown in the figure and set the oil cooler pipe component aside.
    G11436506Courtesy of MAZDA MOTORS CORP.
