Flange and Water Inlet Pipe Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the hoses shown in the figure.
    G11436507Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the hose shown in the figure.
    G11436508Courtesy of MAZDA MOTORS CORP.

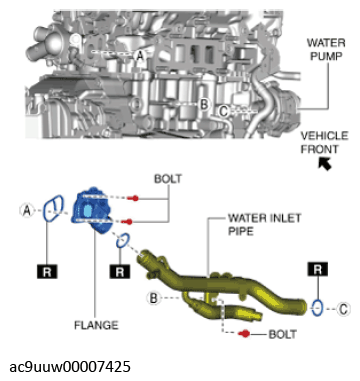

  3. Remove the bolts shown in the figure and remove the flange and water inlet pipe.
    G11436509Courtesy of MAZDA MOTORS CORP.
