Flange and Water Inlet Pipe Installation Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not apply oil (such as engine oil, ATF) to the O-ring of the water inlet pipe. Otherwise, the O-ring could swell causing a seal malfunction.
  • Do not apply oil (such as engine oil, ATF) to the gasket of the flange. Otherwise, the gasket could swell causing a seal malfunction.
  1. Apply engine coolant to the O-ring.
  2. Install the O-ring to the water inlet pipe.
  3. Insert the water inlet pipe into the water pump and flange being careful not to damage the O-ring.

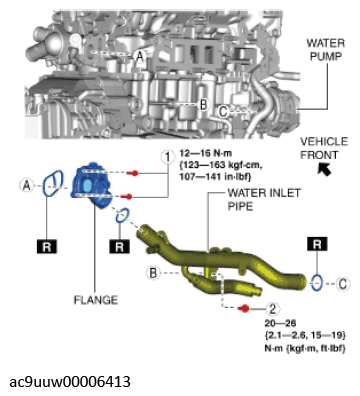

  4. Tighten the bolts in the order shown in the figure.
    Fig 1: Water Inlet Pipe, Water Pump And Bolts With Torque Specification
    G11436522Courtesy of MAZDA MOTORS CORP.

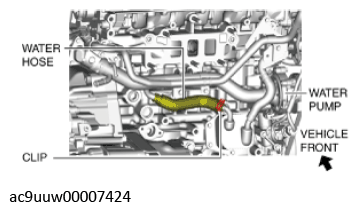

  5. Connect the hose shown in the figure.
    G11436508Courtesy of MAZDA MOTORS CORP.

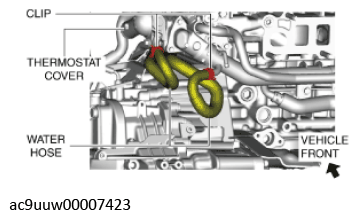

  6. Connect the hoses shown in the figure.
    G11436507Courtesy of MAZDA MOTORS CORP.
