Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the fastener. (With center cowl grille)

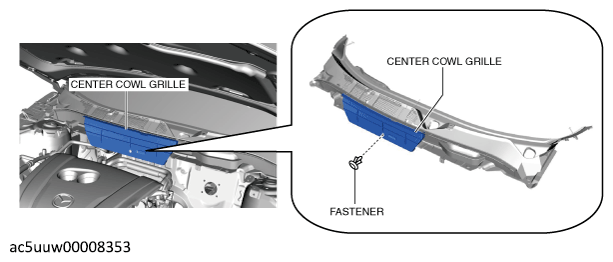

    G12187525Courtesy of MAZDA MOTORS CORP.
  3. Remove the center cowl grille. (With center cowl grille)
  4. Remove the fasteners.

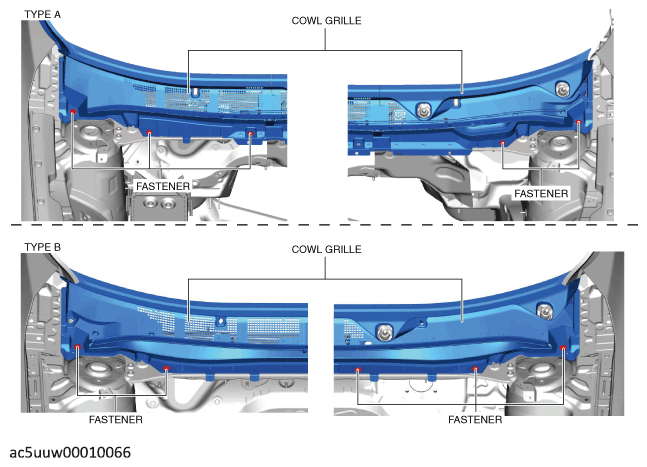

    G12187526Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  6. Pull the cowl grille in the direction of the arrow shown in the figure and detach the guides from the windshield.
    G11427549Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
