Fuel gauge sender unit (sub)

  1. Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [VIN M] .) (See BEFORE SERVICE PRECAUTION [VIN Y] .)
  2. If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE [VIN M] .) (See FUEL DRAINING PROCEDURE [VIN Y] .)
  3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  5. Remove the screws.
    G09077848Courtesy of MAZDA MOTORS CORP.
  6. Remove the service hole cover.
  7. Disconnect the connector.
    G11427792Courtesy of MAZDA MOTORS CORP.
  8. Remove the screws.
    Fig 1: Fuel Gauge Sender Unit (Sub) Screws With Torque Specification
    G09077850Courtesy of MAZDA MOTORS CORP.

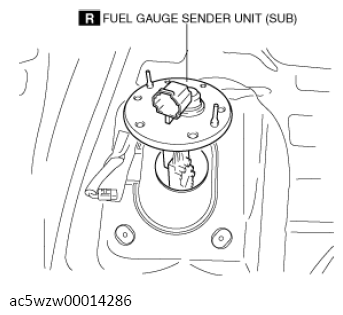

  9. Remove the fuel gauge sender unit (sub).
    G13677210Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
  11. Perform the fuel leakage inspection referring to "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [VIN M] .) (See AFTER SERVICE PRECAUTION [VIN Y] .)
