Water hose No. 2 (water pipe side) installation note

WARNING: This page is about a different variant/trim than selected.

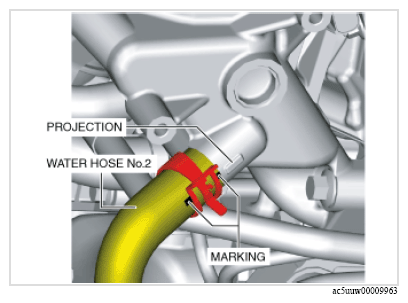

  1. Install the water hose No. 2 to the water pipe as shown in the figure with the hose clamp expanded.
    NOTE:
    • A new water hose and hose clamp are attached.
    G13112724Courtesy of MAZDA MOTORS CORP.
  2. Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.
    G11441166Courtesy of MAZDA MOTORS CORP.
    • Verify that the installation angle of the hose clamp is within the range shown in the figure.
  3. Verify that the hose clamp does not interfere with any other components.
