Water hose No. 1 (water pipe side) installation note

WARNING: This page is about a different variant/trim than selected.
  1. Install the water hose No. 1 to the water pipe as shown in the figure with the hose clamp expanded.
    NOTE:
    • A new water hose and hose clamp are attached.
    G11441163Courtesy of MAZDA MOTORS CORP.

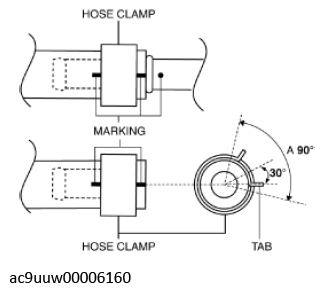

  2. The hose clamp installation direction is within range A shown in the figure.
    G11441164Courtesy of MAZDA MOTORS CORP.
  3. Verify that the hose clamp does not interfere with any other components.
