Magnetic Clutch Adjustment (VIN 7, VIN L & VIN M)

WARNING:

If the engine is started while servicing the A/C compressor, the drive belt could get caught causing injury. Never start the engine while servicing the A/C compressor.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a thickness gauge.

Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch clearance is the standard.
Magnetic clutch clearance

0.35-0.65 mm {0.014-0.025 in}

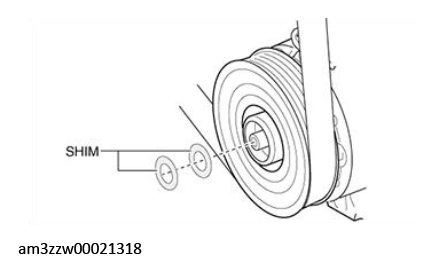

- If the magnetic clutch clearance is not within the standard, adjust the magnetic clutch clearance by changing the type or number of the shim kit. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (VIN 7 & VIN L) .)
Courtesy of MAZDA MOTORS CORP.
