Drive Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

49 E011 1A0
Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Bolt
Quantity: 6
Location of use: Drive plate

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6A-EL (US)] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL (US)] .)

Remove in the order indicated in the table.

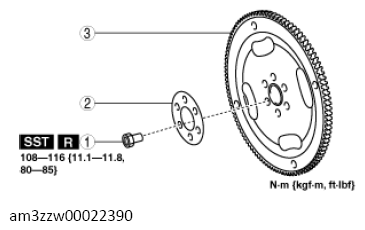

Fig 1: Drive Plate Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Drive plate installation bolts (See DRIVE PLATE INSTALLATION BOLTS REMOVAL NOTE .) (See DRIVE PLATE INSTALLATION BOLTS INSTALLATION NOTE .)
2	Backing plate
3	Drive plate
