Up Switch: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

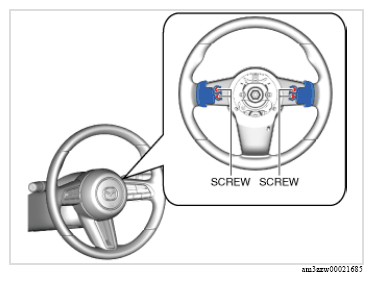

- Remove the screw.

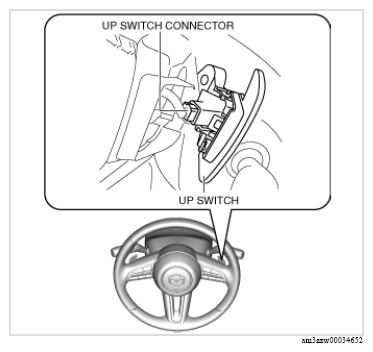

- Disconnect the up switch connector.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Verify that the continuity between up switch component terminals A and B.
- If there is any malfunction, replace the up switch. (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION .)
