Oil Cooler: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT (US) .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [(VIN 7 & VIN L) (US)] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [(VIN 7 & VIN L) (US)] .)
Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT (US) .)
Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST (US) .)

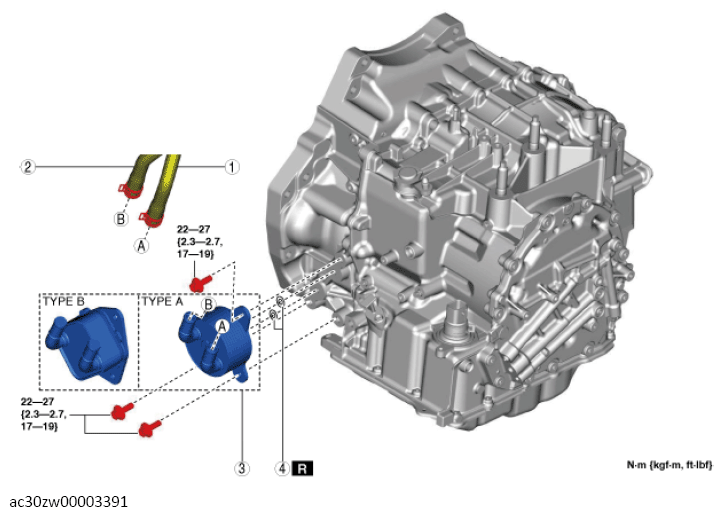

Fig 1: Oil Cooler Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Water hose No. 1 (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
2	Water hose No. 2 (See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
3	Water-cooled oil cooler
4	O-rings
