Drive Plate Removal/Installation (Us): Notes

Special Service Tool (SST)

49 E011 1A0 Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

Replacement Part

1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6A-EL (VIN 7 & VIN L) (US)) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6AX-EL (VIN 7 & VIN L) (US)) .)
2. Remove in the order indicated in the table.

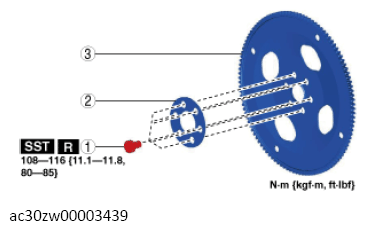

   Fig 1: Drive Plate Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   PART DESCRIPTION



   1	Drive plate installation bolts (See DRIVE PLATE INSTALLATION BOLTS REMOVAL NOTE .) (See DRIVE PLATE INSTALLATION BOLTS INSTALLATION NOTE .)
   2	Backing plate
   3	Drive plate

3. Install in the reverse order of removal.
