Oil Pump Driven Sprocket Installation Note (VIN 7)

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil pump driven sprocket.

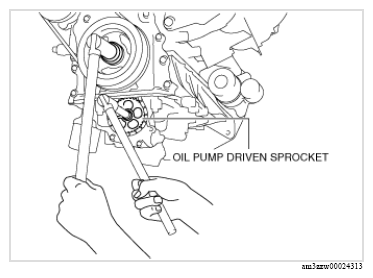

  2. While locking the oil pump against rotation as shown in the figure, tighten the oil pump driven sprocket installation bolt.
G13174769Courtesy of MAZDA MOTORS CORP.
