DTC P2507:00 [Pcm (SKYACTIV-G)]: Outline
WARNING: This page is about a different variant/trim than selected.
DTC P2507:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
PCM battery voltage low input |
| Detection condition |
- The PCM monitors the voltage of backup battery positive terminal. If the PCM detects that the battery positive terminal voltage is below 6 V for specified period, the PCM determines that the backup voltage circuit has a malfunction.
|
| Fail-safe |
|
| Possible cause |
- Battery malfunction

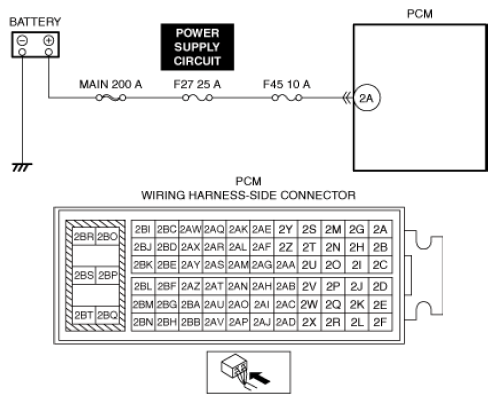

- Short to ground or open circuit in PCM power supply circuit
- PCM connector or terminals malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
