DTC P2107:00 [Pcm (SKYACTIV-G)]: Outline
WARNING: This page is about a different variant/trim than selected.
DTC P2107:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Throttle valve actuator control module processor error |
| Detection condition |
- PCM internal malfunction.
|
| Fail-safe |
- Restricts the upper limit of the engine speed.
- Fixes the throttle valve opening angle.
|
| Possible cause |
- Throttle body connector or terminals malfunction
- PCM connector or terminals malfunction

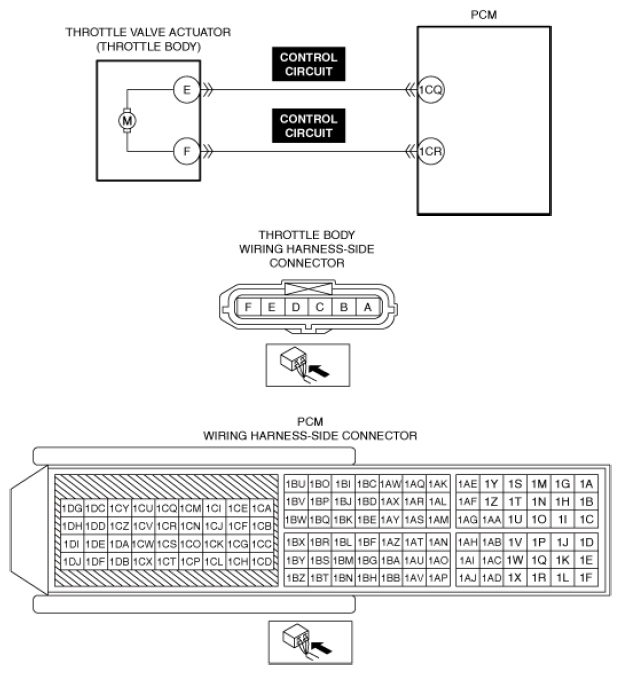

- Short circuit in throttle valve actuator control circuits
- PCM malfunction
- Throttle valve actuator control module internal processor malfunction (built-into PCM)
|
 Courtesy of MAZDA MOTORS CORP.
|
