Function Explanation (DTC Detection Outline): P2096:00
WARNING: This page is about a different variant/trim than selected.
- If a condition in which the feedback correction amount from the HO2S signal is large (fuel injection amount being increased) continues for the specified time (25 s), the PCM determines a feedback correction amount malfunction and stores a DTC.

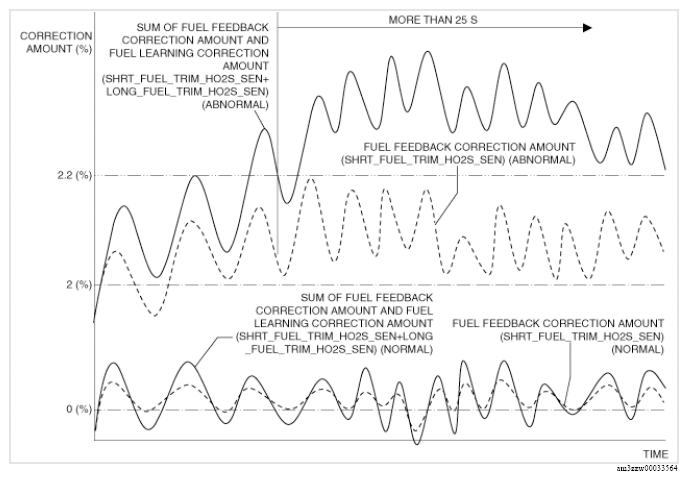

- A condition in which the fuel feedback correction amount (SHRT_FUEL_TRIM_HO2S_SEN) for the HO2S is the specified value (2 %) or more and the sum (SHRT_FUEL_TRIM_HO2S_SEN+LONG_FUEL_TRIM_HO2S_SEN) of the fuel feedback correction amount and the fuel learning correction amount is the specified value (2.2 %) or more continues for a period of 25 s.
