DTC P0808:00 [Pcm (SKYACTIV-G (Us))]: Outline

WARNING: This page is about a different variant/trim than selected.

DTC P0808:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Clutch stroke sensor circuit high input
Detection condition	The output voltage of the clutch stroke sensor is more than 4.76 V for a continuous 5 s. Precondition Battery voltage: 8-16 V Switch the ignition ON (engine off or on)
Fail-safe	Not applicable

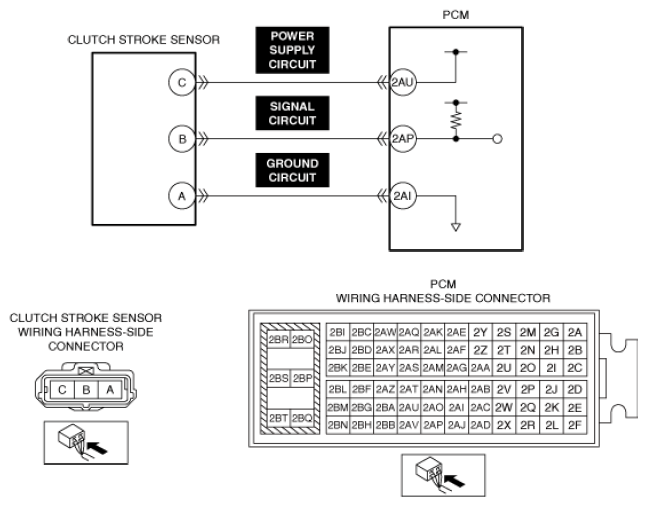

Possible cause	Clutch stroke sensor incorrect installation Clutch stroke sensor connector or terminals malfunction PCM connector or terminals malfunction Short to power supply in any of the following clutch stroke sensor circuits. Signal circuit Ground circuit Short circuit in clutch stroke sensor power supply circuit and signal circuit Open circuit in clutch stroke sensor ground circuit Clutch stroke sensor malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
