DTC P06A2:00 [Pcm (SKYACTIV-G)]: Outline
WARNING: This page is about a different variant/trim than selected.
DTC P06A2:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Compressor valve circuit high input |
| Detection condition |

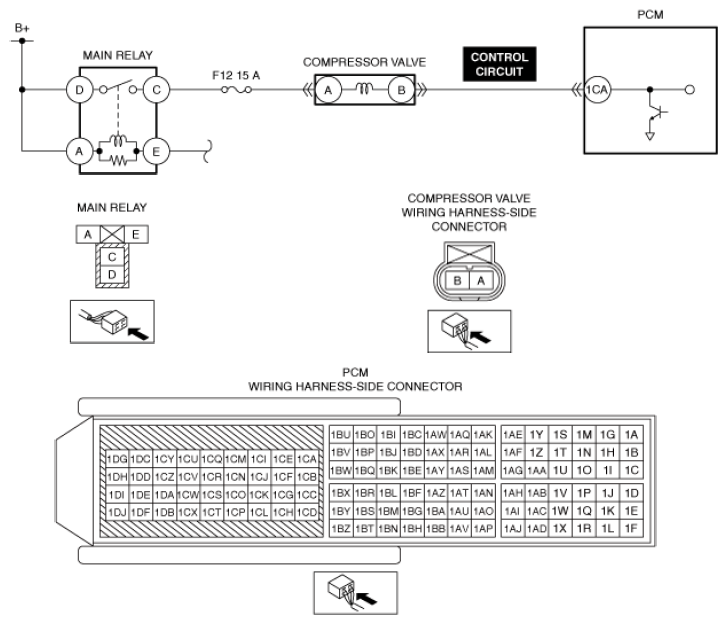

- The compressor valve control voltage at the PCM terminal 1CA is high for a continuous 5 s relative to the PCM control signal.
|
| Fail-safe |
|
| Possible cause |
- Compressor valve connector or terminals malfunction
- PCM connector or terminals malfunction
- Short to power supply in compressor valve control circuit
- Compressor valve malfunction (built-into A/C compressor)
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
