DTC P06A1:00 [Pcm (SKYACTIV-G)]: Outline

WARNING: This page is about a different variant/trim than selected.

DTC P06A1:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

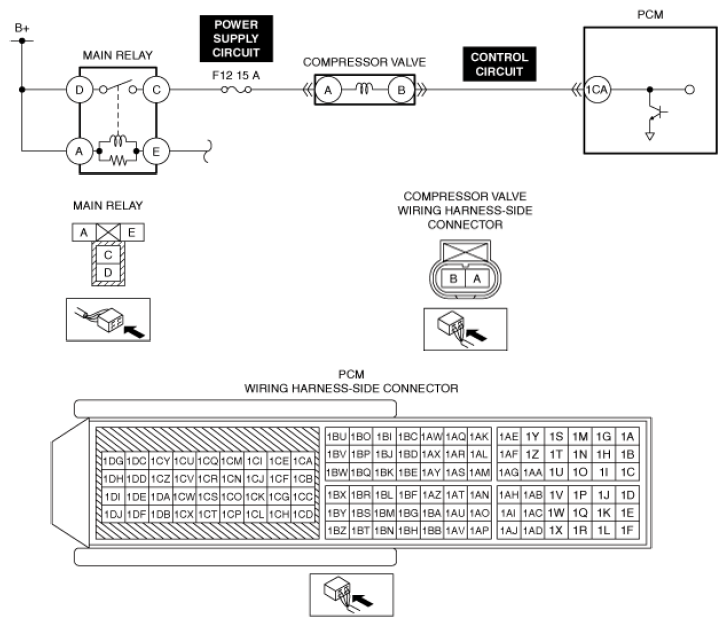

System malfunction location	Compressor valve circuit low input
Detection condition	The compressor valve control voltage at the PCM terminal 1CA is low for a continuous 5 s relative to the PCM control signal.
Fail-safe	Not applicable
Possible cause	Compressor valve connector or terminals malfunction F12 15 A fuse malfunction Short to ground in compressor valve power supply circuit Open circuit in compressor valve power supply circuit Short to ground in compressor valve control circuit PCM connector or terminals malfunction Open circuit in compressor valve control circuit Compressor valve malfunction (built-into A/C compressor) PCM malfunction
Courtesy of MAZDA MOTORS CORP.
