DTC P0463:00 [Pcm (SKYACTIV-G (Us))]: AWD: Outline

WARNING: This page is about a different variant/trim than selected.

DTC P0463:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE - AWD

System malfunction location	Fuel gauge sender unit circuit high input
Detection condition	The PCM monitors the fuel level signal and fuel gauge sender unit output voltage from the instrument cluster. If the PCM detects that the fuel level, fuel gauge sender unit (main), or fuel gauge sender unit (sub) output voltage is too high, the PCM determines that the fuel gauge sender unit (main) or fuel gauge sender unit (sub) circuit has a malfunction.
Fail-safe	Not applicable

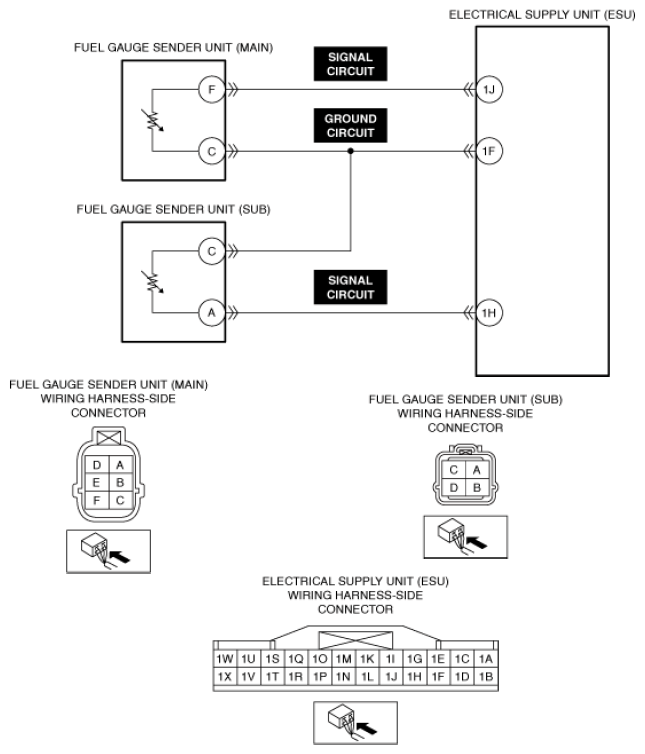

Possible cause	Fuel gauge sender unit (main) connector or terminals malfunction Fuel gauge sender unit (sub) connector or terminals malfunction Electrical supply unit (ESU) connector or terminals malfunction Short to power supply in fuel gauge sender unit (main) signal circuit Short to power supply in fuel gauge sender unit (sub) signal circuit Open circuit in any of the following fuel gauge sender unit (main) circuits. Signal circuit Ground circuit Open circuit in any of the following fuel gauge sender unit (sub) circuits. Signal circuit Ground circuit Fuel gauge sender unit (main) malfunction Fuel gauge sender unit (sub) malfunction Electrical supply unit (ESU) malfunction Instrument cluster malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
