DTC P0462:00 [Pcm (SKYACTIV-G (Us))]: 2WD: Outline

WARNING: This page is about a different variant/trim than selected.

DTC P0462:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE - 2WD

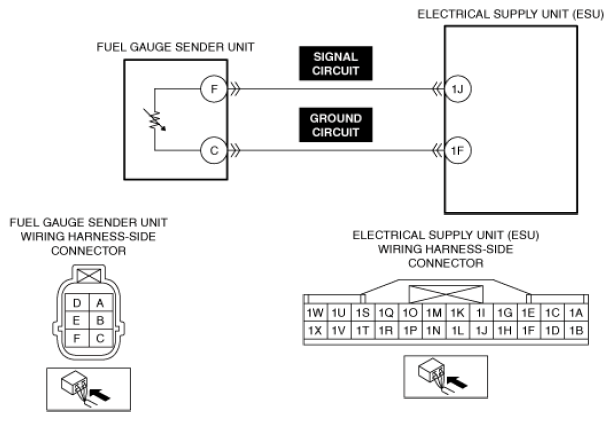

System malfunction location	Fuel gauge sender unit circuit low input
Detection condition	The PCM monitors the fuel level signal and fuel gauge sender unit output voltage from the instrument cluster. If the PCM detects a fuel level or fuel gauge sender unit output voltage that is too low, the PCM determines that the fuel gauge sender unit circuit has a malfunction.
Fail-safe	Not applicable
Possible cause	Fuel gauge sender unit connector or terminals malfunction Electrical supply unit (ESU) connector or terminals malfunction Short to ground in fuel gauge sender unit signal circuit Short circuit in fuel gauge sender unit signal circuit and ground circuit Fuel gauge sender unit malfunction Electrical supply unit (ESU) malfunction Instrument cluster malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
