DTC P0365:00 [Pcm (SKYACTIV-G)]: Outline

WARNING: This page is about a different variant/trim than selected.

DTC P0365:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

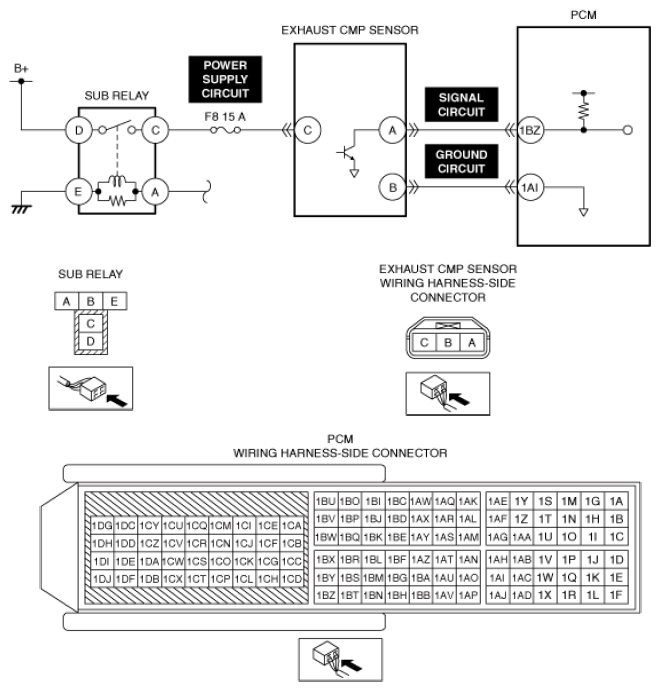

System malfunction location	Exhaust CMP sensor circuit problem
Detection condition	The exhaust CMP sensor input signal pattern, received while the crankshaft rotates 24 times, is incorrect. Cylinder identification is not completed while the crankshaft rotates 15 times.
Fail-safe	Stops fuel injection Stops ignition
Possible cause	Exhaust CMP sensor connector or terminals malfunction F8 15 A fuse malfunction Short to ground in exhaust CMP sensor power supply circuit Open circuit in exhaust CMP sensor power supply circuit Short to ground in exhaust CMP sensor signal circuit PCM connector or terminals malfunction Short to power supply in exhaust CMP sensor signal circuit Short circuit in exhaust CMP sensor signal circuit and ground circuit Open circuit in any of the following exhaust CMP sensor circuits. Signal circuit Ground circuit Exhaust CMP sensor malfunction Exhaust CMP sensor is dirty Exhaust CMP sensor pulse wheel malfunction CKP sensor connector or terminals malfunction Loose timing chain or improper valve timing PCM malfunction
Courtesy of MAZDA MOTORS CORP.
