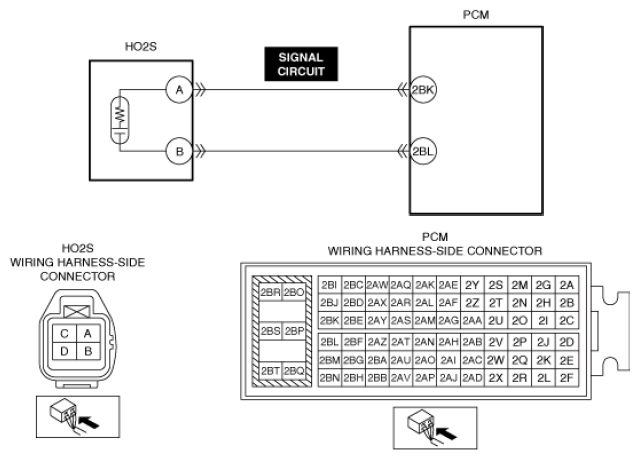

DTC P0140:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
HO2S circuit no activity detected |
| Detection condition |
Determination conditions |
- With the estimated temperature of the HO2S element exceeding the specified value, a condition in which the HO2S signal voltage is less than the specified value continues for the specified period.
|
| Preconditions |
- Battery voltage: above 11 V
- The following DTCs are not detected:
- HO2S: P0137:00 and P0138:00
- ECT sensor No. 1: P0117:00 and P0118:00
- MAF sensor: P0100:00, P0101:00 and U060F:00
|
| Drive cycle |
|
| Self test type |
|
| Sensor used |
|
| Fail-safe function |
|
| Vehicle status when DTCs are output |
|
| Possible cause |
- HO2S connector or terminals malfunction
- PCM connector or terminals malfunction
- Short to ground in HO2S signal circuit
- Open circuit in HO2S signal circuit
- HO2S incorrect installation
- HO2S malfunction
- Exhaust gas leakage from exhaust system (between A/F sensor and HO2S)
- Insufficient engine compression
- HO2S heater malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
