Details On DTCs

WARNING: This page is about a different variant/trim than selected.
DTC P0130:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE

Description Voltage problem between PCM terminal 1S and PCM terminal 1M
Detection condition Determination conditions
  • A condition in which the voltage between PCM terminals 1S and 1M exceeds the specified range continues for the specified period or more.
Preconditions
  • Switch the ignition ON (engine off or on)
  • Battery voltage: 11-18 V(1)
  • The following DTC is not detected:
    • Internal PCM malfunction: P064D:00
Drive cycle
  • 2
Self test type
  • CMDTC self test, KOER self test
Sensor used
  • A/F sensor
Fail-safe function
  • Fixes duty value of A/F sensor heater
  • Stops fuel feedback control of A/F sensor
Vehicle status when DTCs are output
  • Not applicable
Possible cause
  • A/F sensor connector or terminals malfunction
  • PCM connector or terminals malfunction
  • Deterioration in any of the following A/F sensor circuits.
  • Control circuit
    • Signal circuit
  • A/F sensor malfunction
  • PCM malfunction

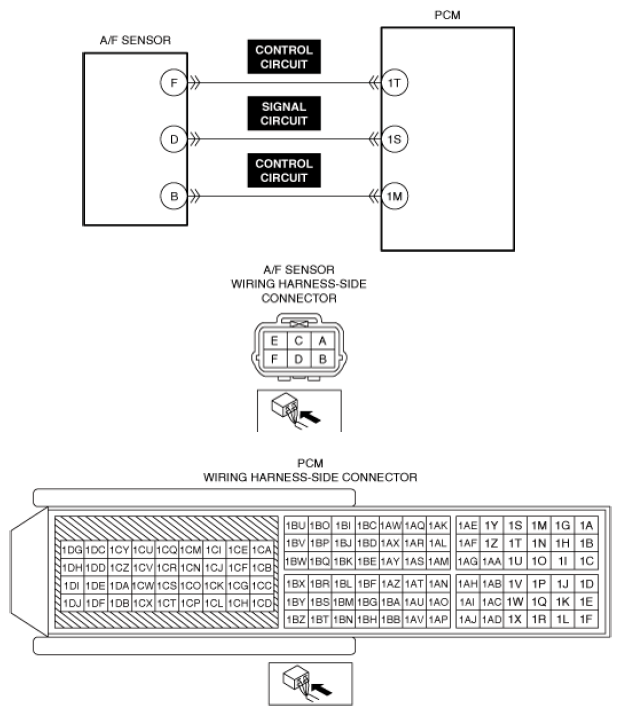

G13729487Courtesy of MAZDA MOTORS CORP.
(1) Standard can be verified by displaying PIDs using M-MDS
