DTC P0097:00 [Pcm (SKYACTIV-G)]: Outline
WARNING: This page is about a different variant/trim than selected.

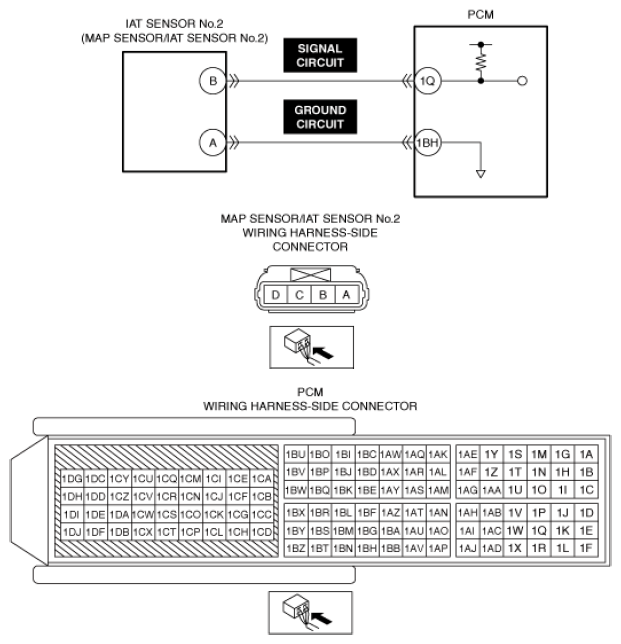

DTC P0097:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
IAT sensor No. 2 circuit low input |
| Detection condition |
- If the PCM detects that the IAT sensor No. 2 voltage at the PCM terminal 1Q is 0.35 V or less for 5 s, the PCM determines that the IAT sensor No. 2 circuit voltage is low.
|
| Fail-safe |
|
| Possible cause |
- MAP sensor/IAT sensor No. 2 connector or terminals malfunction
- IAT sensor No. 2 malfunction
- Short to ground in IAT sensor No. 2 signal circuit
- PCM connector or terminals malfunction
- Short circuit in IAT sensor No. 2 signal circuit and ground circuit
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
