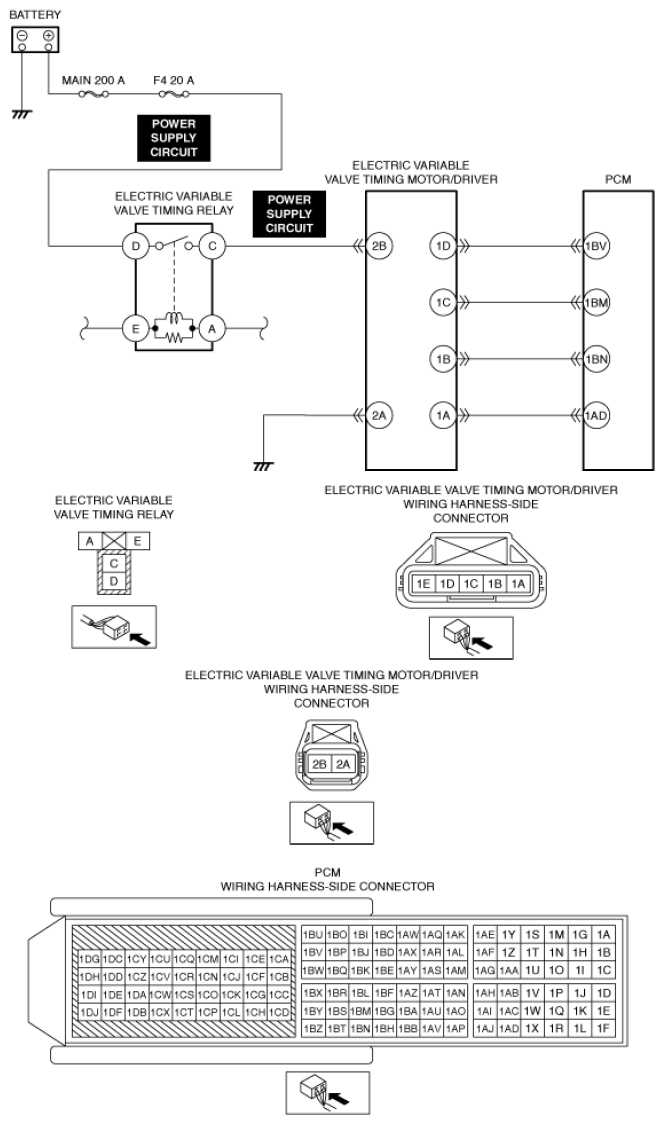

DTC P0011:00 OR P0012:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Electric variable valve timing control system:
- P0011:00: Over-advanced
- P0012:00: Over-retarded
|
| Detection condition |
Determination conditions |
- P0011:00: For the advance amount from the maximum intake valve retard position, a condition in which the actual advance amount is larger than the target value continues for a specified period of time.
|
- P0012:00: For the advance amount from the maximum intake valve retard position, a condition in which the actual advance amount is smaller than the target value continues for a specified period of time.
|
| Preconditions |
- Battery voltage: above 11 V
- Engine speed: 5, 000 rpm or less
- Engine coolant temperature: 20 °C {68 °F} or more
- The following DTCs are not detected:
- P0010:00, P0335:00 and P0340:00
|
| Malfunction determination period |
|
| Drive cycle |
|
| Self test type |
|
| Sensor used |
- CKP sensor
- Intake CMP sensor
|
| Fail-safe function |
|
| Vehicle status when DTCs are output |
|
| Possible cause |
- Electric variable valve timing motor/driver connectors or terminals malfunction
- Short to ground or open circuit in electric variable valve timing relay power supply circuit
- Short to ground in electric variable valve timing motor/driver power supply circuit
- Open circuit in electric variable valve timing motor/driver power supply circuit
- PCM connector or terminals malfunction
- Electric variable valve timing relay malfunction
- Electric variable valve timing motor malfunction
- Electric variable valve timing actuator malfunction
- Electric variable valve timing actuator is stuck in advanced position
- Electric variable valve timing actuator is stuck in retarded position
- Poor assembly of timing chain
- Mis-detection of intake CMP sensor
- Mis-detection of CKP sensor
- PCM malfunction
|
