Ignition Coil/Ion Sensor Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removalPART DESCRIPTION

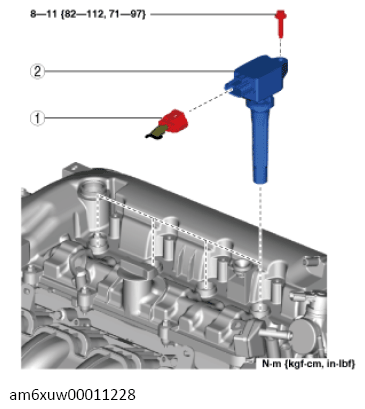

1 Connector 2 Ignition coil/ion sensor
