Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the hose and coolant reserve tank cap as a single unit.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

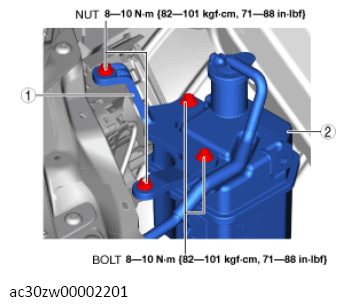

    Fig 1: Coolant Reserve Tank Components With Torque Specification
    G13731599Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Bracket
    2 Coolant reserve tank
    (See COOLANT RESERVE TANK INSTALLATION NOTE .)
