Purge Solenoid Valve Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION
- Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION
- Disconnect the high pressure fuel pump connector.

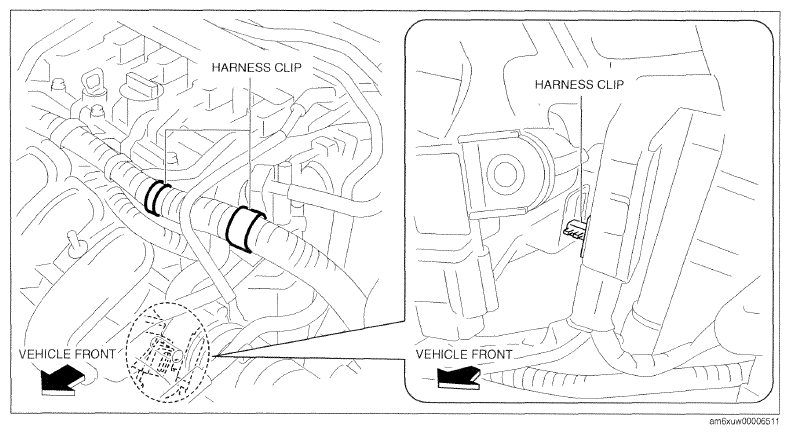

- Disconnect the harness clip as shown in the figure.
- Disconnect the harness clip as shown in the figure.
- Disconnect the coolant control valve connector. ( See COOLANT CONTROL VALVE REMOVAL/INSTALLATION .)

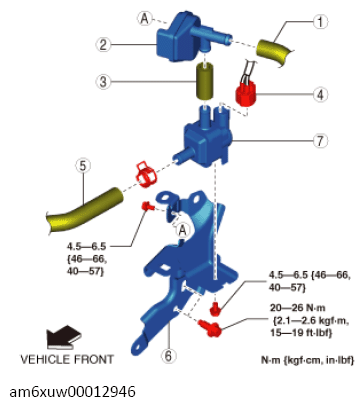

- Remove in the order indicated in the table.PART DESCRIPTION
1 Evaporative hose No. 1
(See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .)2 Catch tank 3 Evaporative hose No. 2 4 Purge solenoid valve connector 5 Evaporative hose No. 3
(See EVAPORATIVE HOSE NO. 3 INSTALLATION NOTE .)6 Purge solenoid valve bracket 7 Purge solenoid valve - Install in the reverse order of removal.
