Positive Crankcase Ventilation (PCV) Valve Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

PART DESCRIPTION

Gasket	Retainer	O-ring
Quantity: 1	Quantity: 1	Quantity: 1
Location of use: Oil separator	Location of use: PCV valve	Location of use: PCV valve

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) )
Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

VIN 7

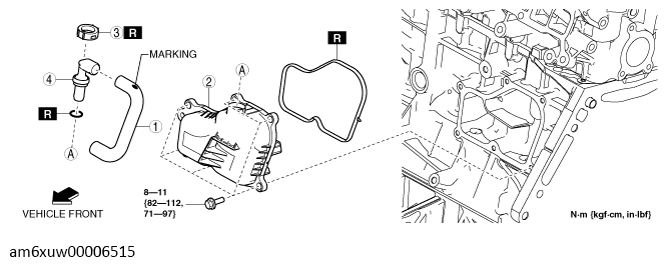

Fig 1: Positive Crankcase Ventilation Valve Components With Torque Specification (VIN 7)

Courtesy of MAZDA MOTORS CORP.

VIN L

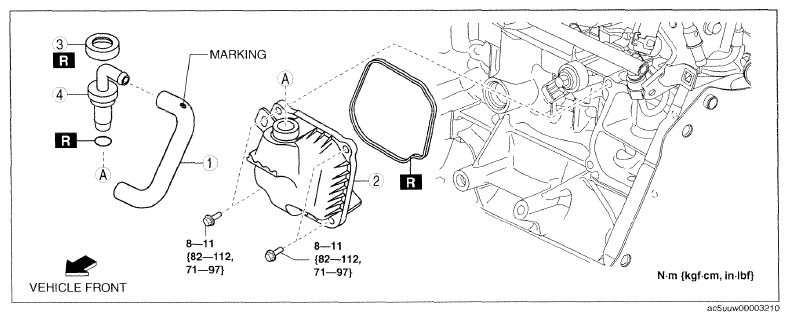

Fig 2: Positive Crankcase Ventilation Valve Components With Torque Specification (VIN L)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	PCV hose (See PCV HOSE INSTALLATION NOTE .)
2	Oil separator
3	Retainer (See RETAINER REMOVAL NOTE .) (See RETAINER INSTALLATION NOTE .)
4	PCV valve
