U.S.A. and CANADA (Charcoal canister (sub)): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the rear tire (RH). (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  3. Remove the rear splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

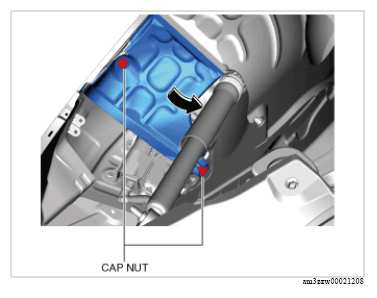

  4. Remove the cap nuts. (See MUDGUARD REMOVAL/INSTALLATION .)
    G13175199Courtesy of MAZDA MOTORS CORP.
  5. Set the rear mudguard (RH) aside. (See MUDGUARD REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

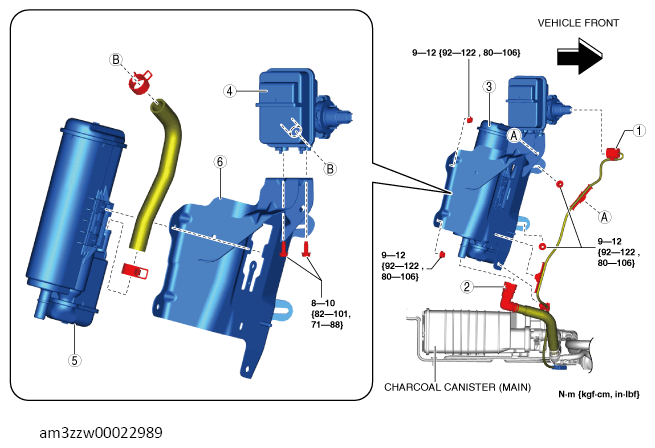

Fig 1: Charcoal Canister Sub Components With Torque Specification (USA And Canada)
G13713910Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 CV solenoid valve connector
2 Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
3 Charcoal canister (sub) component
4 Air filter component
5 Charcoal canister (sub)
(See CHARCOAL CANISTER (SUB) REMOVAL NOTE .)
(See CHARCOAL CANISTER (SUB) INSTALLATION NOTE .)
6 Charcoal canister (sub) bracket
