U.S.A. and CANADA (Charcoal canister (main)): Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)

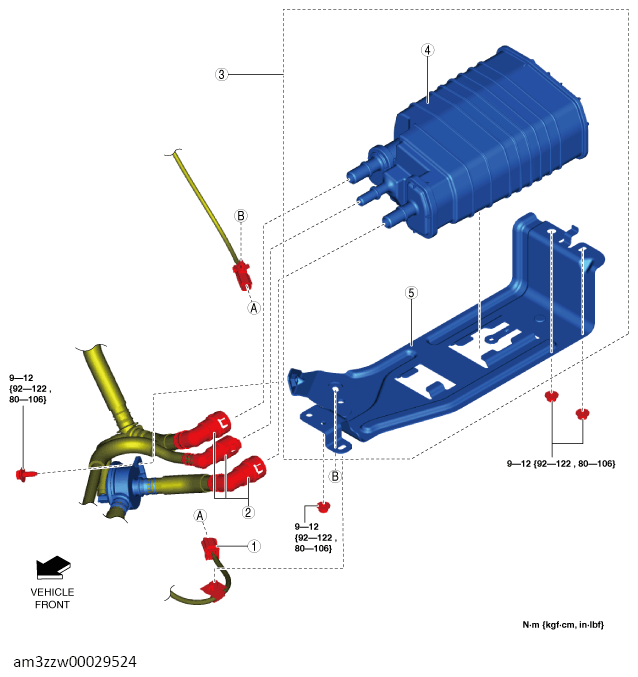

PART DESCRIPTION
| 1 | Wiring harness connector |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 3 | Charcoal canister (main) component (See CHARCOAL CANISTER (MAIN) COMPONENT INSTALLATION NOTE .) |
| 4 | Charcoal canister (main) (See CHARCOAL CANISTER (MAIN) REMOVAL NOTE .) |
| 5 | Charcoal canister (main) bracket |
