U.S.A. And CANADA

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the charcoal canister (sub) component. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)

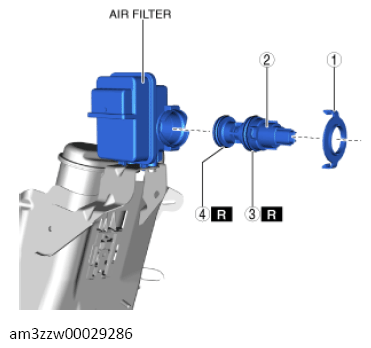

Remove in the order indicated in the table.
Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Blind cap
2	CV solenoid valve (See CV SOLENOID VALVE REMOVAL NOTE .) (See CV Solenoid Valve Installation Note .)
3	O-ring No. 1
4	O-ring No. 2
