Fuel-filler Pipe Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily install the fuel-filler pipe to the vehicle-side stud bolt.

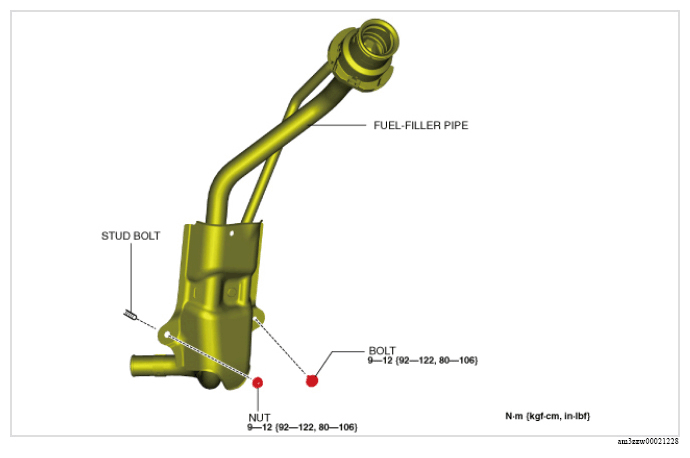

    Fig 1: Fuel-Filler Pipe, Stud Bolts With Torque Specification
    G13174997Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt.
  3. Completely tighten the nut.
  4. Completely tighten bolt.
