Rear Oil Seal Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
Special Service Tool (SST)
SPECIAL SERVICE TOOL DESCRIPTION
| 49 S033 101 Dust cover installer |
Replacement Part
PART DESCRIPTION
| Rear oil seal |
| Quantity: 1 |
| Location of use: Cylinder block |
Oil and Chemical Type
OIL AND CHEMICAL TYPE DESCRIPTION
| Engine oil |
| Type: Recommended oil |
- Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R]. (MTX)) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6A-EL (US)] . (2WD, ATX)) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL (US)] . (AWD, ATX))
- Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R]. (MTX)) (See DRIVE PLATE REMOVAL/INSTALLATION . (ATX))

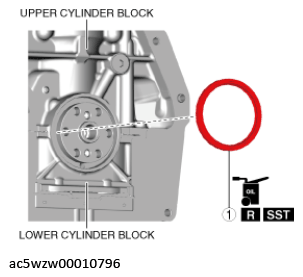

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
PART DESCRIPTION
| 1 | Rear oil seal (See REAR OIL SEAL REMOVAL NOTE .) (See REAR OIL SEAL INSTALLATION NOTE .) |
