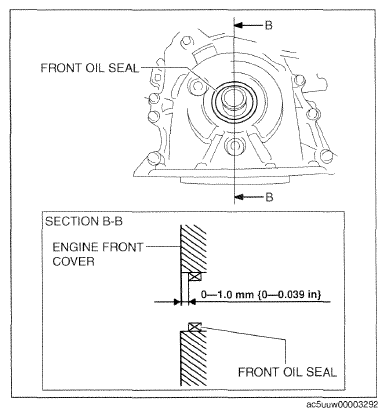

Front Oil Seal Installation Note: Notes
WARNING: This page is about a different variant/trim than selected.
- Apply clean engine oil to the inner surface of a new front oil seal.
- Insert the front oil seal into the engine front cover by hand.
- Tap the front oil seal in evenly using the SST and a hammer.
