No. 1 engine mount installation note (2WD)

WARNING: This page is about a different variant/trim than selected.
  1. Tighten the No. 1 engine mount bracket installation bolts in the order shown in the figure.

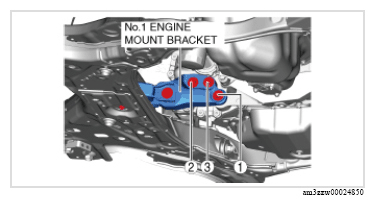

    Fig 1: No. 1 Engine Mount Bracket Bolts Tightening Sequence (2WD)
    G13174534Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.

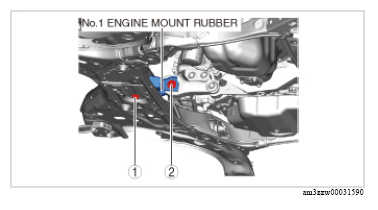

    Fig 2: No. 1 Engine Mount Rubber Bolts Tightening Sequence (2WD)
    G13174535Courtesy of MAZDA MOTORS CORP.
  3. Tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.
Fig 3: No. 1 Engine Mount Rubber Bolts Tightening Sequence (2WD)
G13174535Courtesy of MAZDA MOTORS CORP.
