Exhaust side

WARNING: This page is about a different variant/trim than selected.

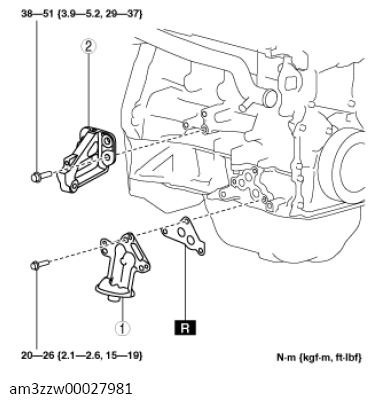

Fig 1: Oil Filter Body, Exhaust Manifold Bracket Components With Torque Specification (Exhaust Side)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Oil filter body (See EXHAUST MANIFOLD BRACKET INSTALLATION NOTE .)
2	Exhaust manifold bracket (See EXHAUST MANIFOLD BRACKET NO. 1 REMOVAL NOTE .)
